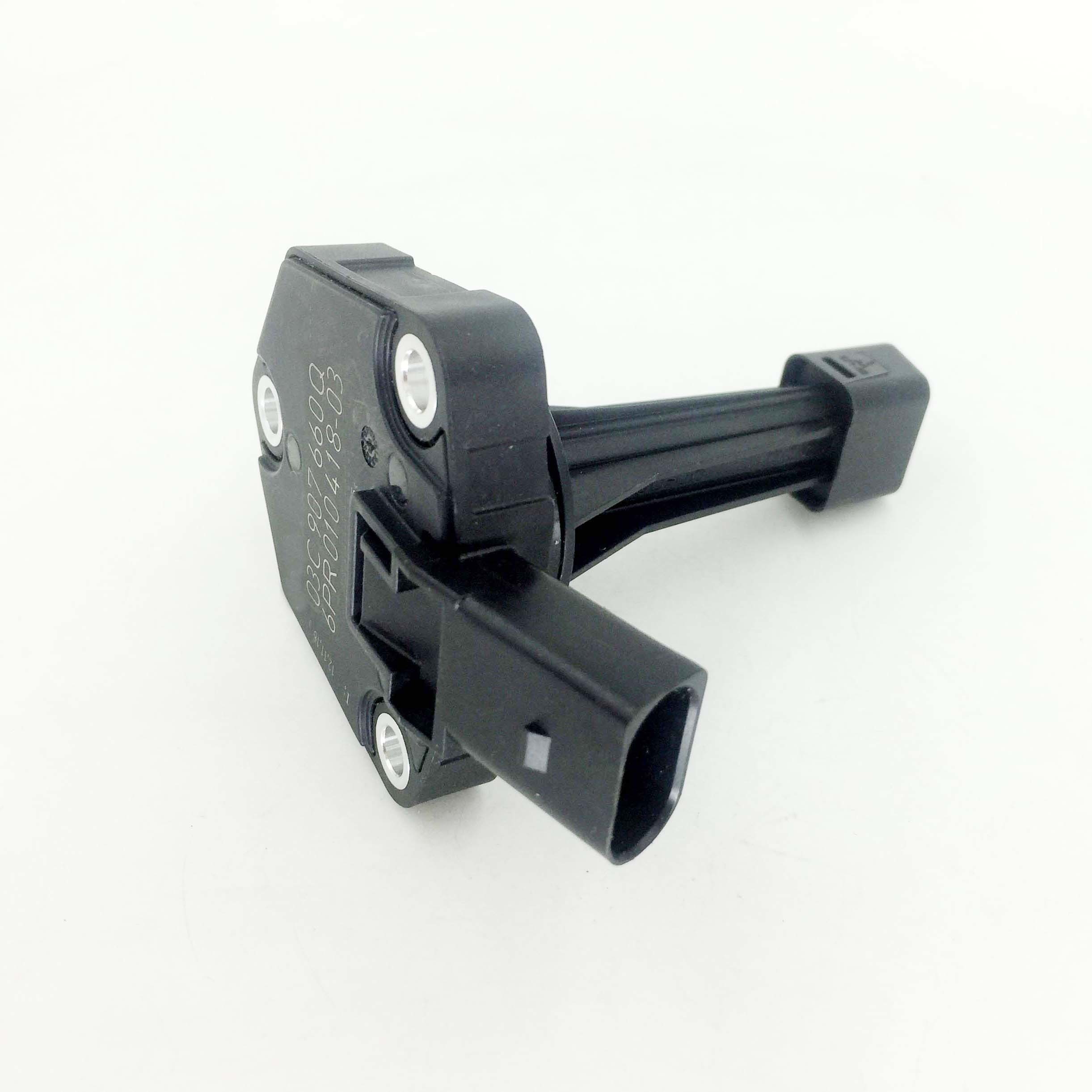

Oil Level Sensor for Audi Golf Maiteng 03C907660Q 03C907660M 03L103601E

Oil Level Sensor for Audi Golf Maiteng 03C907660Q 03C907660M 03L103601E

CDL-01008

Category:

Oil Level Sensor

Applications:

Audi Golf Maiteng

OEM:

03C907660Q 03C907660M 03L103601E

E-mail:

china@raqitai.com

Messges

Product Description

Keywords:

A. precautions for installation of liquid level sensor

1. when replacing the liquid level sensor ,first remove the waste engine oil and refill the oil.lf the oil isnot replaced,filter the impurities inthe oil before refilling.

2. please add the appropriate amount of oil quantity and brand according to the requirements of the mainreance manual.

3. during installation,check the cleanness of the corresponding installation holes of the oil pan .

4. lnstall the liquid level sensor, insert the sensor ,then carefully rotate the sensor,aligh the mounting hole and tighten the three fastening bolts.

5. after installation,clean the greasy dirt on the sensor surface and insert the cable plug.make sure that there is no oil in the plug.

B. common fault handling

low liquid level alarm

1. the engine oil does not completely flow into the sensor; wait until the engine oil temperature rises to above 90°C or the ignition runs for 15 minutes,clear the fault code,and restart after power failure (mandatory)

2. lack of engine oil; add engine oil

3. oil impurities block the oil inlet hole of the sensor; remove the sensor and clean the oil inlet hole of the sensor.

4. sensor damage; replace the sensor.

level sensor missng signal

1. abnormal plug contact; unplug and replug the connector plug,and clean the oil stain in the cable plug.

2. fuse burnt out; replace the fuse.

3. sensor damage; replace the sensor.

oil leakage

1. missing sealing ring; install sealing ring.

2. external objects at the sensor mount; clean the sealing area.

3. the sensor is not installed smoothly; remove and reinstall.
